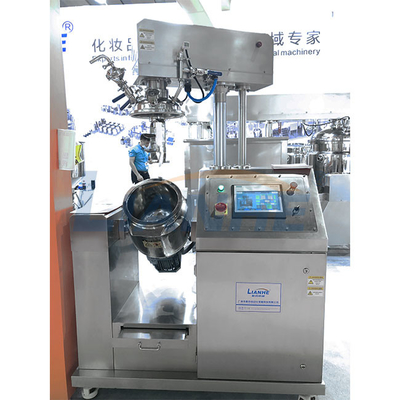

Lab Size Vacuum Emulsifying Mixer Cosmetic Cream Ointment Making Machine Vacuum Mixer for Body Lotion
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | LIANHE |
| Сертификация: | CE , ISO , SGS , TUV |
| Номер модели: | LH-VME 5-25 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 |
|---|---|
| Цена: | Contact Us |
| Упаковывая детали: | Нормально упакованный в деревянном фильме случая или создания программы-оболочки, также смогите быть |
| Время доставки: | 30 рабочих дней |
| Условия оплаты: | T/T, L/C, D/A, наличные деньги |
| Поставка способности: | 20 набор/наборов в месяц |
|
Подробная информация |
|||
| емкость: | 5L - 5000L подгоняло доступное | Использование: | Вязкостная жидкость & смешивать сливк делая эмульсию |
|---|---|---|---|
| Смешивая скорость: | 0-65 Rpm | Гомогенизируя скорость: | 0-3600 rpm |
| Напряжение тока: | 220V / 380V/подгонянное 400V | Материал: | SUS316L/SUS304 |
Характер продукции
Lab Size Vacuum Emulsifying Mixer Cosmetic Cream Ointment Making Machine Vacuum Mixer for Body Lotion
Product Description:
Our vacuum emulsifying mixer series equipment provides you with all the standard process-solutions, such as mixing, dispersion, agitation, homogenization and so on. Advanced mixing equipment ensures the uniformity of finished product quality. The vacuum emulsifier mixer has been designed to provide you with a variety of peripherals. Vacuum, jacket heating/cooling, hydraulic lifting, and sampling design make it ideal for fluid Integration.
Product Features:
1. The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard.
2. All pipelines and parameter are controlled automatically if needed. Electronics are imported from foreign country, like Siemens ,Schneider, ABB etc.
3. Emulsifying tank is with CIP cleaning system, it makes the cleaning easier and more effective.

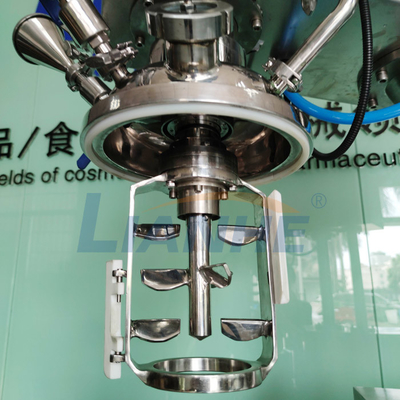

4.Emulsifying tank adopts tertiary agitating system, during emulsification procedure, the whole processing is under vacuum environment, so it not only can eliminate spume which created in the emulsification processing, but also can avoid the unnecessary pollution.

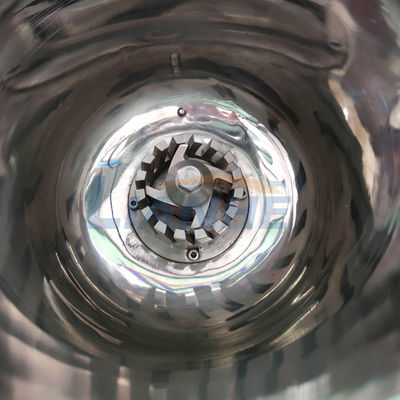

5. The homogenizer adopts the most advanced technology similar with German IKA, it can get an ideal emulsifying effect.The speed of emulsifier is 0-3600 r/min, and the speed of low mixing is 0-65 r/min.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
The vacuum emulsifying mixer has wide application in different industries:
1. Cosmetic Industry: face cream, body lotion, eye serum, shampoo, hair dye, hair removal wax, hair conditioner, etc;
2. Pharmaceutical Industry: ointment, burn cream.
3. Food Industry: mayonnaise, ketchup, sesame paste, peanut butter, etc.
4. Chemical Industry: Wax, sauce, detergent, paint, etc.
Control System:
Operators can manage the equipment by pressing buttons on the control panel, which include:
• Lighting Control System
• Main pot’s stirring operations
• Main pot’s uniform functioning
• Vacuum system’s operation control
• Water and oil pot’s mixing operations
• Heating process for water and oil pots
